Ideal for fast and fool proof testing  of COILS AND SMALL TRANSFORMERS Test frequency : 50 Hz to 10KHz Step

Data Sheet : CVCTS20D10



Ideal for fast and fool proof testing  of COILS & TRANSFORMERS at very high speed testing.



VE2729XA / VE2729XB : 200KHz Transformer Tester

VE2739XA / VE2739XB : 500KHz Transformer Tester

VE2749XA / VE2749XB : 1MHz Transformer Tester

Data Sheet : VE27x9XA / VE27x9XB




Automatic Test Equipment ATE for Relays

Ideal for  automatic testing of  Electro mechanical and Read Relays (Only DC relays)
Data Sheet : CVRT



Digital LCR Meter

LCR Meter for testing SMALL TRANSFORMERS like SMPS transformers, Telecom Transformers (HYBRID, POT CORE, RM-CORE), Pulse transformers etc.
Data Sheet : VLCRTZ



100 KHz Digital LCR Meter

This is perfect combination of general LCR meter and high-performance LCR meter with high-accuracy. The meter 10 measurement frequencies from 50Hz to 100kHz, 5-digit resolution.

Data Sheet : VE2817

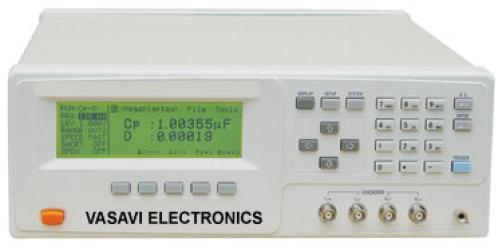

200 KHz Digital LCR Meter

This is perfect combination of general LCR meter and high-performance LCR meter with high-accuracy. The meter 10 measurement frequencies from 50Hz to 200kHz, 5-digit resolution.

Data Sheet : U2816B

200 KHz Digital LCR Meter

This is perfect combination of general LCR meter and high-performance LCR meter with high-accuracy. The meter 19 measurement frequencies from 50Hz to 200kHz, 5-digit resolution.

Data Sheet : VE2836U

1 MHz Digital LCR Meter

This is perfect combination of general LCR meter and high-performance LCR meter with high-accuracy.

Measurement frequencies from 20Hz to 1 MHz @ Resolution of 10mHz

Data Sheet : VE2815U

5 MHz Digital LCR Meter

This is perfect combination of general LCR meter and high-performance LCR meter with high-accuracy.

Measurement frequencies from 20Hz to 5 MHz @ Resolution of 10mHz

Data Sheet : VE2826U

Handheld LCR Meter VE822 / VE822A / VE822C

Handheld LCR Meter

VE822 : 100Hz, 120Hz,1KHz

VE822A : 100Hz, 120Hz, 1KHz, 10KHz

VE822C : 100Hz, 120Hz, 1KHz, 10KHz, 100KHz

Data Sheet :VE822 / VE822A / VE822C

BUY 100KHz Handheld LCR Meter (VE822C) :

Digital TURNS - LCRTZ Meter & Computerized Test System LCRTZ-S8

Ideal for automatic and fool proof testing of Toroidal coils, Energy meter CT's and Bobbins and Ratio Tester for any transformers in built with 8 Pin Scanner for Automatic testing of multi winding transformers.
Note: This model is superior to Digital Turns Tester

        Data Sheet :LCRTZ_S8

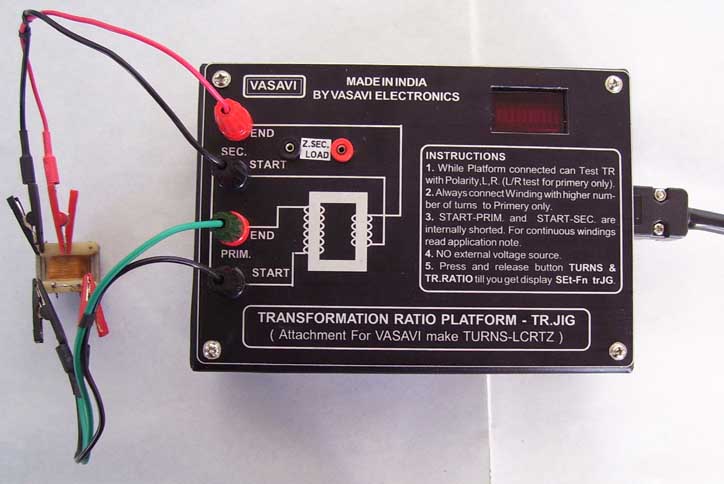

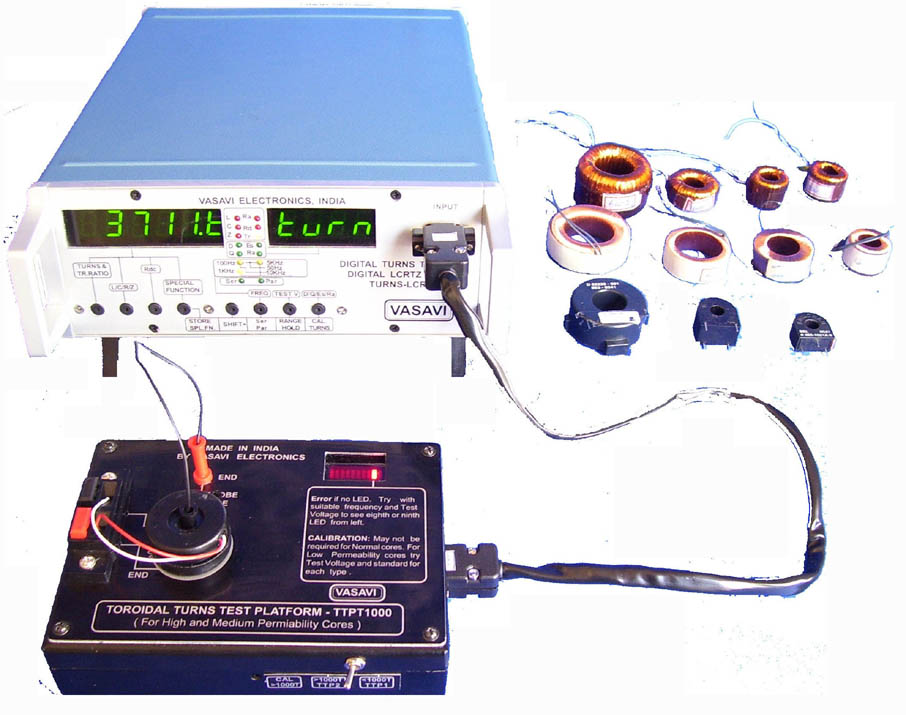

Digital Turns Tester

Ideal for automatic and fool proof testing of Toroidal coils, Energy meter CT's and Bobbins and Ratio Tester for any transformers

        Data Sheet : TURNS LCRTZ



Bobbin Turns Tester / Coil Turns Tester

These products can be used to measure the turns of motor windings, high / low voltage coils , transformers, Relay windings,  wound Bobbins and so on.

 Data Sheet : Winding Turns Tester

Demo Video : Winding Turns Tester Video

Impulse Tester / Winding Short Tester

Impulse Tester can detect turn & layer short ,the differences in the number of turns and the     material of the core. If high impulse voltage is applied, the poor insulation will appear as a corona or layer discharge

Data Sheet : Impulse Tester

Automatic SMPS/ADAPTER TEST SYSTEM VCAT-S4

Automatic SMPS / ADAPTER test System is most ideal for mobile chargers, battery chargers, SMPS etc.

Data Sheet :VCAT - S4

150W / 300W Programmable Electronics DC Load VE0173A / VE1173A

Programmable Electronic DC Load for 30A most ideal for mobile chargers, battery chargers, SMPS etc. Can test with CC, CP, CR Mode

Data Sheet :VE0173A / VE1173A

250W / 400W / 200W / 350W Programmable Electronics DC Load VE0273A / VE1273A / VE2273A / VE3273A

Programmable Electronic DC Load for 20A / 30A / 40A most ideal for mobile chargers, battery chargers, SMPS etc.  Can test with CV, CC, CP, CR Mode

Data Sheet : VE0273A / VE1273A / VE2273A / VE3273A

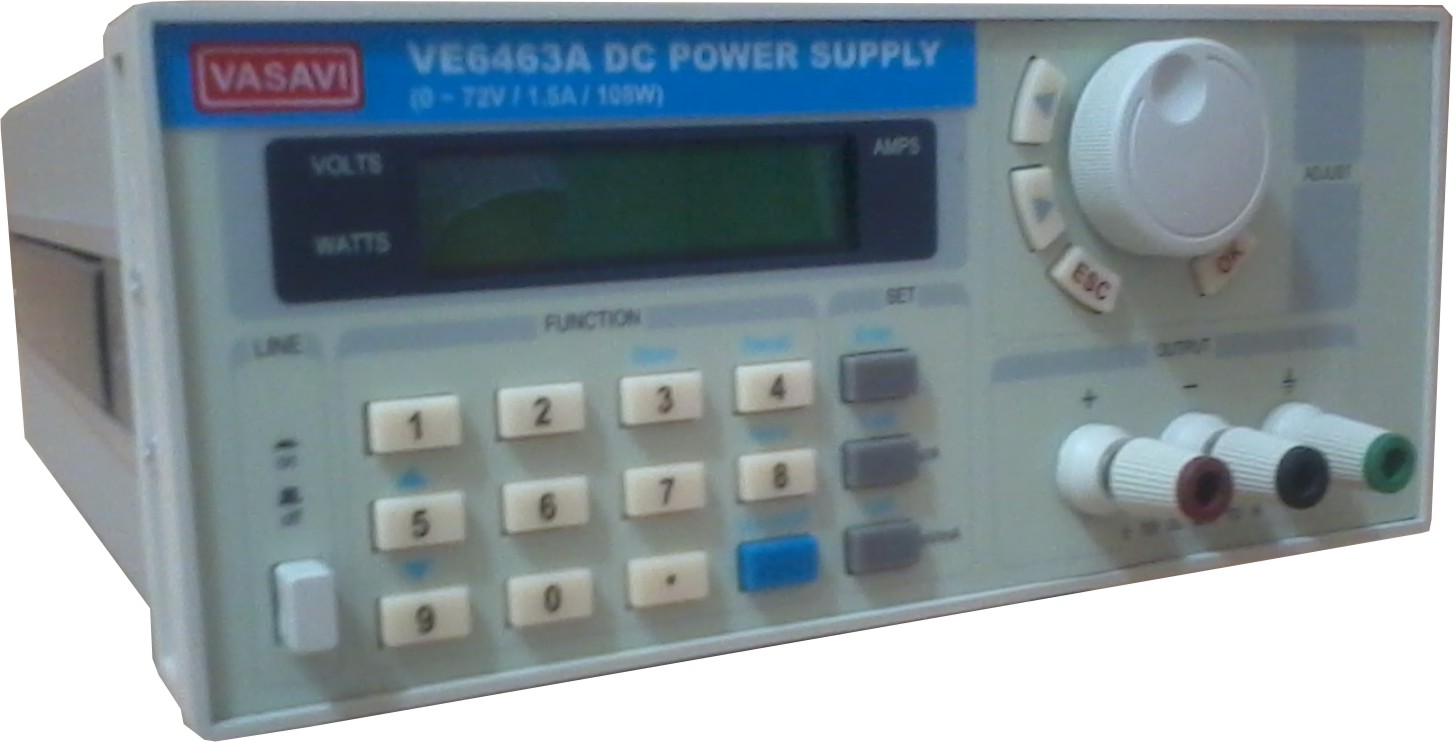

Programmable DC Power Supply VE4463A / VE5463A / VE6463A

Programmable DC Power Supply

VE4463A : 0 ~ 18 VDC / 0 ~ 5A / 90W

VE5463A : 0 ~ 36 VDC / 0 ~ 3A / 108W

VE6463A : 0 ~ 72 VDC / 0 ~ 1.5A / 90W

Data Sheet :VE4463A / VE5463A / VE6463A

Withstand Voltage (Hi Pot) and Insulation Resistance tester VE9051U / VE9053SU Series

Withstand Voltage (Hi Pot) and Insulation tester is a unique instrument with high performance electrical safety tester with new technology.

VE9051U  - HiPot  (AC/DC) / 5KV AC / 30mA (AC) / 6KV DC /  10mA (DC). IR 1MOhm to 10GOhm (Current Range 10nA to10mA)

VE9053SU  -  Its same as VE9051U with 8-Channel Scanner.

Data Sheet :VE9051U

Data Sheet :VE9053SU

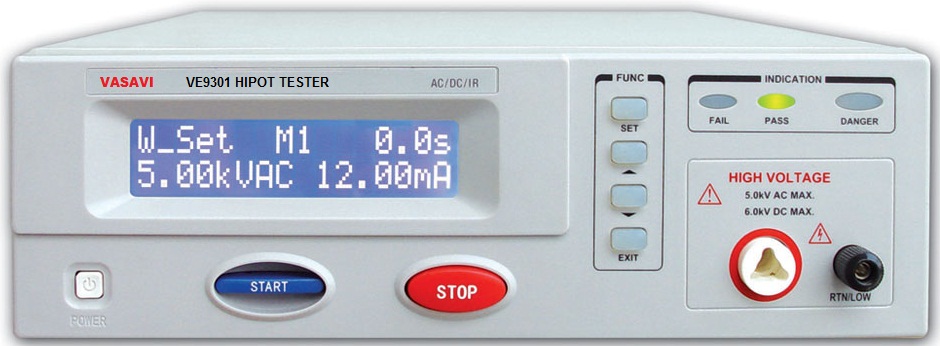

Withstand Voltage (Hi Pot) and Insulation Resistance tester VE9301 Series

Withstand Voltage (Hi Pot) and Insulation tester is a unique instrument with high performance electrical safety tester with new technology.

VE9301  - HiPot  (AC/DC) / 5KV AC / 12mA (AC) / 6KV DC /  5mA (DC). IR 1MOhm to 9999MOhm

VE9301A  - HiPot  (AC/DC) / 5KV AC / 12mA (AC) / 6KV DC /  5mA (DC)

Data Sheet :Hi - Pot / IR 9301

Insulation Resistance tester

Insulation Resistance Tester is a unique instrument with high performance electrical safety tester with new technology.

IR : 500 Ohm to 1 T Ohm

Data Sheet :VE2683U
