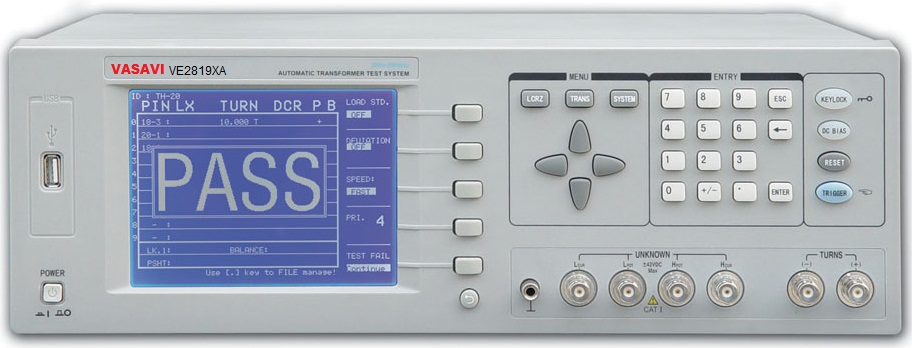

Automatic Transformer tester

200KHz 500KHz & 1MHz Transformer tester


Transformer tester

Transformer test Fixture

Brief Introduction

        VE27x9XA/VE27x9XB is an automatic transformer tester with wide range of frequency (20 Hz ~ 200 kHz)  ; (20Hz ~ 500KHz) ; & (20Hz ~ 1MHz) and 20 Pin scanning. It can measure all primary parameters like Inductance L, Leakage Inductance Lk, Turns-Ratio Tr, DC resistance DCR, Impedance |Z|, and Capacitance (between windings) C etc. And secondary parameters include Quality Factor Q , ESR and Phase etc.

        It has advanced digital sampling technique and high-speed scanning test fixture that make the transformer testing simple and easy. There is a provision for selecting several signal output impedances.Turns-ratio is calculated by the inductance of primary and secondary windings, which decreases the measurement error caused by large leakage of magnetic flux, for example low-coupling coefficient transformer. VE2819XA is also a precise impedance measurement instrument with 6-digit resolution and high speed over a wide measurement range. This instrument can be used for production testing, incoming inspection or QC.

Features for main Instrument (VE2729XA / VE2729XB)

  •  20-channel transformer scanning measurement

  •  320240 dot-matrix large color LCD display

  •  Frequency: 20Hz to 200kHz, with 10mHz resolution

  •  2 different output impedances: 30 Ohms and 100 Ohms

  •  Basic accuracy of 0.1%

  •  Open, Short and Load correction

  •  0V, 1.5V and 2V internal DC bias voltage

  •  20 sets of instrument settings saved and loaded

  •  40 sets of scanning settings saved and loaded

  •  Optional 10V(100mA) and 1A DC bias source

Features for only VE2729XA

  • LCR Meter

  • Built-in comparator, 10 bins and bin counters

  • 10-point list sweep function

  • Test signal level monitor function

  • Automatic level control function for V and I

Features for Transformer test Fixture

  •  Standard transformer scanning control interface

  •  Complete four-terminal test for transformer pins

  •  Optional pneumatic and manual fixing method

  •  Optional transformer pin fixture

  •  Up to 20 pin transformers programmed

  •  PASS/FAIL LED indication and volume control, including high, low, long and short

  •  Measurement status and result output through HANDLER interface (Optional)

Specifications

VE2819XA

20-channel transformer

scanning measurement

LCR meter

VE2819XB ---------------

VE2819XA

LCR parameter

|Z|, |Y|, C, L, X, B, R, G, D, Q, θ

DCR, turns ratio, phase, leakage inductance

Transformer parameter

turns ratio, turns, phase, L, C, Lk, Q, ACR, DCR, balance, pin short

Test frequency

20 Hz200 kHz, with resolution of 10mHz

Test level

LCR measurement: 5mV2V

Turns measurement5mV4V

Constant level: 10mV1V accuracy: 5% resolution: 1mV

Output impedance

Turns ratio

2Vrms:10, 30, 100

>2Vrms: 30, 100

Others

30, 100selectable

Basic accuracy

LCRZ,DCR

0.1%

Turns ratio

0.5%

Display range

|Z|, R, X  :0.00001 99.9999M

|Y|, G, B  :0.00001S 99.9999S

C            :0.00001pF 9.9999F

L             : 0.00001H 99.9999KH

D            : 0.00001 9.99999

Q            :  0.00001 99999.9

DCR      : 1m 99.9999M

θ (DEG) :  -179.999 179.999

θ (RAD)  : -3.14159 3.14159

turns ratio :1:0.01100:1

%            :  -999.999% 999.999%

Measurement time (1kHz)

Fast          : 32ms,

Medium   : 90ms,

 Slow        : 650ms

Equivalent circuit

Series, Parallel

Range mode

Auto, Hold

Trigger mode

Internal, Manual, External

Average times

1-255

Calibration

Open / Short / Load

DC bias source

0V, 1.5V, 2V, accuracy: 1%

Comparator

10-bin sorting and bin counter

Memory

20 sets of LCRZ setting files saved (VE2819XA)

40 sets of scanning setting files saved

Interface

RS232C (Optional)

General Specifications



Operating temperature & humidity

0C40C, ≤ 90%RH

Power supply

Voltage

198V242V

Frequency

47.5Hz63Hz

Power consumption

80VA

Dimensions (WHD)

400mm150mm430mm

Weight

Approx. 8.5kg


Data Sheet : VE27x9A / VE28x9XB
