Company
Profile
Vasavi
Electronics was established in
early 70’s. Vasavi is led by a team of highly
qualified managers and research engineers with decades of experience in
instrumentation field. Vasavi Electronics surpasses international competition by
orienting the products to the present trends. Vasavi
Electronics is proud for its first introduction of Digital LCR Meters in India
during early 70’s. After its successful launch of LCR meters , started
increasing product range like Frequency Generators , Oscilloscopes , Digital
Meters . etc and wide range of import substitute instruments.
During
early 90’s Vasavi has realized the importance of Computer controls
and automation in testing . So it has with drawn many of the non profit and low
value items. As a replacement it has introduced novel concepts in component
testing with inexpensive solutions that tune with Indian requirements.
Vasavi Electronics started taking up challenging projects on software controlled
Automatic Test Equipments.
Product
Range
|
|

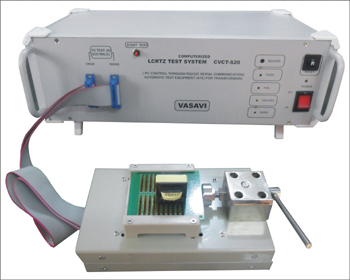

Computerized Automatic Transformer Tester with inbuilt
20 Pin / Channel Scanner for Testing Coils & Transformers (Ferrite)
with Max. 10 Windings. Can Test Inductance, Capacitance, Turns Ratio
with Winding Polaity, DC Resistance, Q, ESR, Rac and Etc..
Test
Frequency :
50Hz to 10KHz in 6 Steps
Test
Signal Voltage :
100mV ~ 1000mV
CVCT-S20
:
Technical Data /
Demonstration Video |
|
|

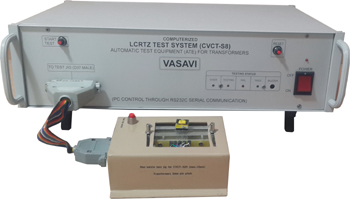

Computerized Automatic Transformer Tester with
inbuilt 8 Pin / Channel Scanner for Testing Coils & Transformers
(Ferrite) with Max. 4 Windings. Can Test Inductance, Capacitance,
Turns Ratio with Winding Polaity, DC Resistance, Q, ESR, Rac and
Etc..
Test
Frequency :
50Hz to 10KHz in 6 Steps
Test
Signal Voltage :
100mV ~ 1000mV
CVCT-S8
:
Technical Data / Demonstration Video |
|
|
Automatic Transformer Tester with inbuilt 20
Pin / Channel Scanner for Testing Coils & Transformers
(Ferrite) with Max. 10 Windings. Can Test Inductance,
Capacitance, Turns Ratio with Winding Polaity, DC Resistance, Q,
ESR, Rac and Etc..
VE2729xAU : 200KHz Transformer Tester
VE2739xAU : 500KHz Transformer Tester
VE2749xAU : 1MHz Transformer Tester
VE2729xAU
:
Technical Data / Demonstration Video |
|
|

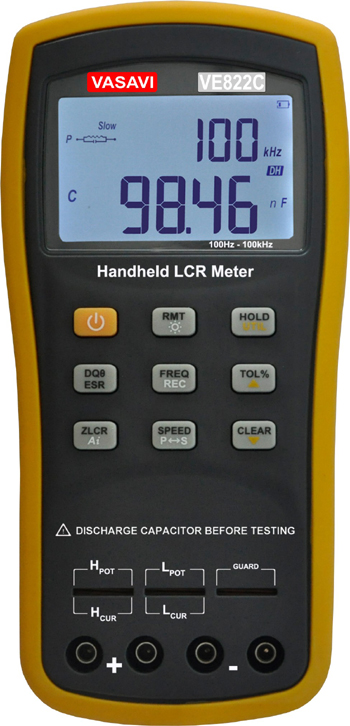

Digital Handheld LCR Meter that can test
Inductance (L), Capacitance (C), AC Resistance, Q, D, ESR
and Tan. It comes with Battery Backup, very easy and handy
to use.
Test
Frequency :
100Hz, 120Hz, 1KHz, 10KHz, 100KHz
VE822C
:
Technical Data / Demonstration Video
BUY 100KHz Handheld LCR Meter (VE822C) :
|
|
|
10KHz Digital LCR Meter that can test
Inductance (L), Capacitance (C), AC Resistance, Q, D, ESR
and Tan.
Test
Frequency :
50Hz, 100Hz, 500Hz, 1KHz, 5KHz, 10KHz
Test
Signal Voltage :
100mV ~ 1000mV in Steps of 100mV
VLCRZ
:
Technical Data / Demonstration Video |
|
|

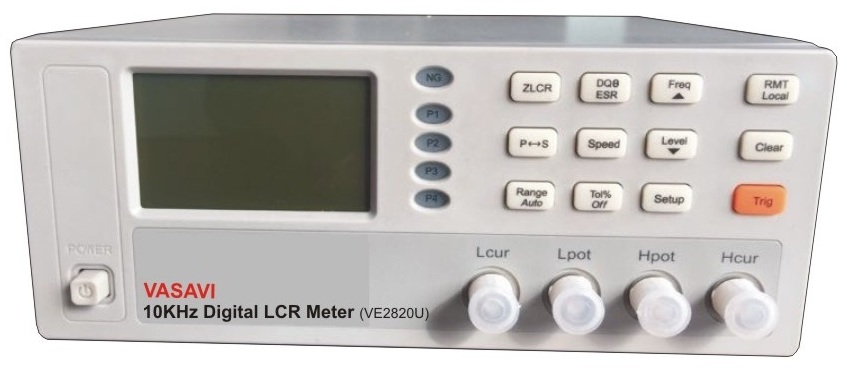

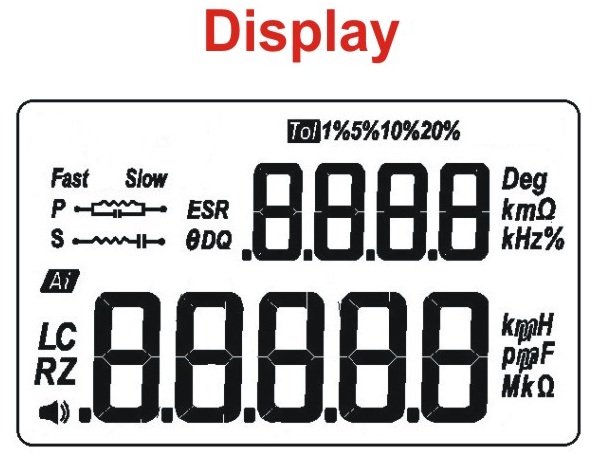

10KHz Digital LCR Meter that can test
Inductance (L), Capacitance (C), AC Resistance, Q, D. Comes with Bin Selection option.
Test
Frequency :
100Hz, 120Hz, 1KHz, 10KHz
Test
Signal Voltage :
0.1V , 0.3V , 1V
VE2820U
:
Technical Data /
Demonstration
Video BUY 10KHz
LCR Meter (VE2820U) :
/
|
|
|

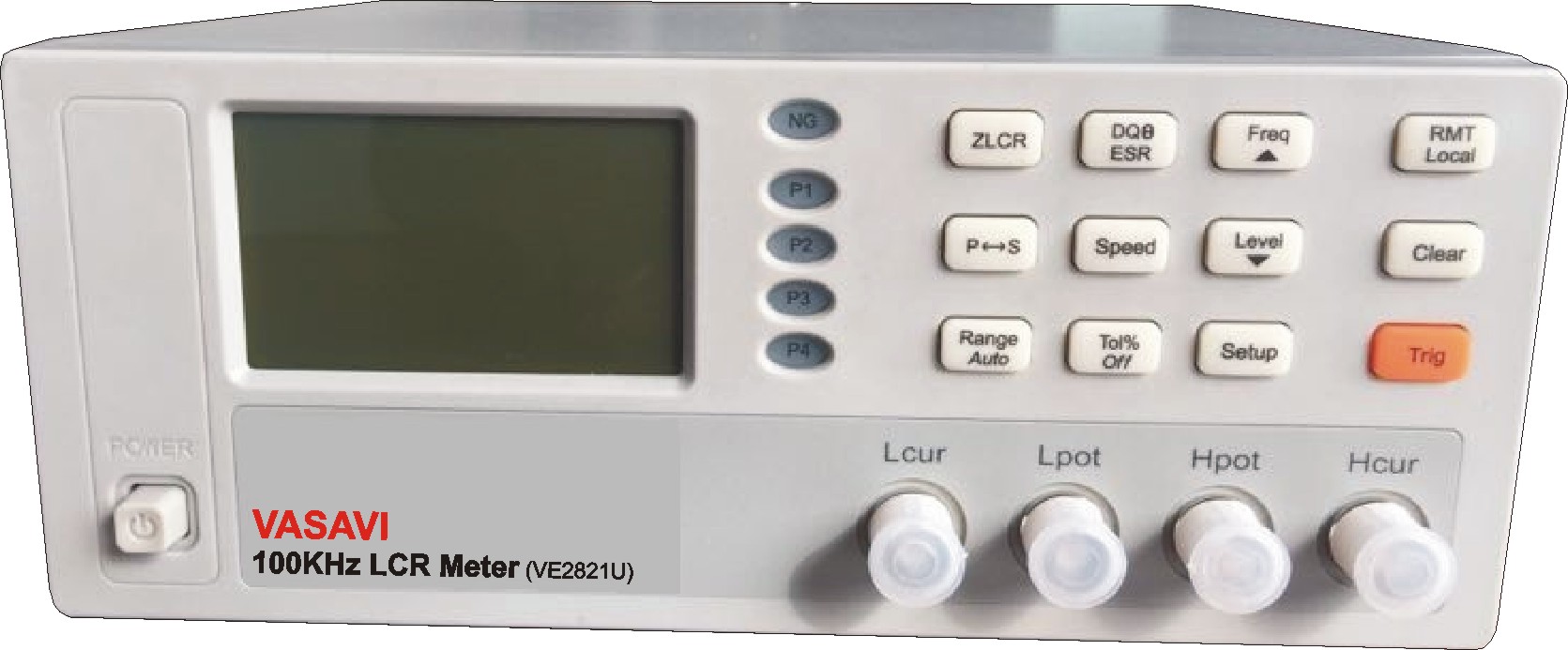

100KHz Digital LCR Meter that can test
Inductance (L), Capacitance (C), AC Resistance, Q, D. Comes with Bin Selection option.
Test
Frequency :
100Hz, 120Hz, 1KHz, 10KHz, 100KHz
Test
Signal Voltage :
0.1V , 0.3V , 1V
VE2821U
:
Technical Data /
Demonstration
Video BUY 100KHz
LCR Meter (VE2821U) : |
|
|
200KHz Digital LCR Meter that can test
Inductance (L), Capacitance (C), AC Resistance, Q, D, ESR and
Tan. Comes with Bin Selection option.
Test
Frequency :
50Hz ~ 200KHz
Test
Signal Voltage :
100mV , 300mV , 1000mV , 2000mV
VE2836U
:
Technical Data / Demonstration Video |
|
|

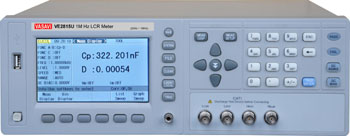

1MHz Digital LCR Meter that can test Inductance
(L), Capacitance (C), DC Resistance, Rac, Q, D, ESR and Tan. Comes
with Bin Selection option.
Test
Frequency :
50Hz ~ 1MHz
Test
Signal Voltage :
10mV ~ 5V in Steps of 10mV
VE2815U
:
Technical Data / Demonstration Video |
|
|
5MHz
Digital LCR Meter that can test Inductance (L), Capacitance (C), DC
Resistance, Rac, Q, D, ESR and Tan. Comes with Bin Selection option.
Test
Frequency :
50Hz ~ 1MHz
Test
Signal Voltage :
10mV ~ 5V in Steps of 10mV
VE2826U
:
Technical Data / Demonstration Video
|
|
|

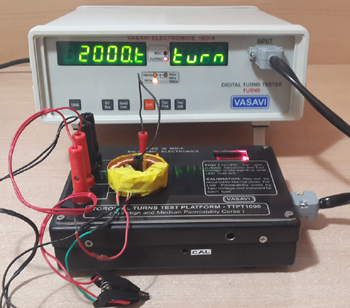

Digital
TURNS TESTER for Counting Number of Turns for Toroidal Coils , Current
Sensor , Current Transformer , Round Core Coils. Can measure, Turns along
with Winding Polarity and DC Resistance.
Turns
Measurement ( through Toroidal Turns Test Platform) :
TTPT-100
:
5
Turns ~ 1000Turns
TTPT-1000
:
500
Turns ~ 10,000Turns
TURNS-TTPT
:
Technical Data /
Demonstration
Video |
|
|

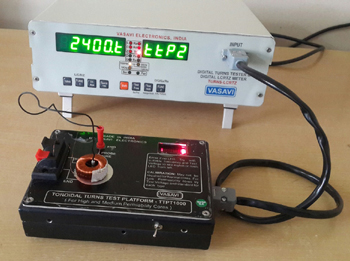

Digital
TURNS TESTER with LCR for
Counting Number of Turns for Toroidal Coils , Current Sensor , Current
Transformer , Round Core Coils. Can measure, Turns along with Winding
Polarity , DC Resistance , Inductance
(L), Capacitance (C), DC Resistance, Rac, Q, D, ESR and Tan.
Turns
Measurement ( through Toroidal Turns Test Platform) :
TTPT-100
:
5
Turns ~ 1000Turns
TTPT-1000
:
500
Turns ~ 10,000Turns
TURNS-LCRTZ
: Technical
Data /
Demonstration
Video |
|
|
Winding
Turns Tester for
Counting Number of Turns for Air Core Coils, Bobbin Coils or
Solenoid Coils. Can measure, Turns along with Winding
Polarity and DC Resistance.
Turns
Measurement : 1
Turns to 80,000 Turns
VE201R
:
Technical Data /
Demonstration Video |

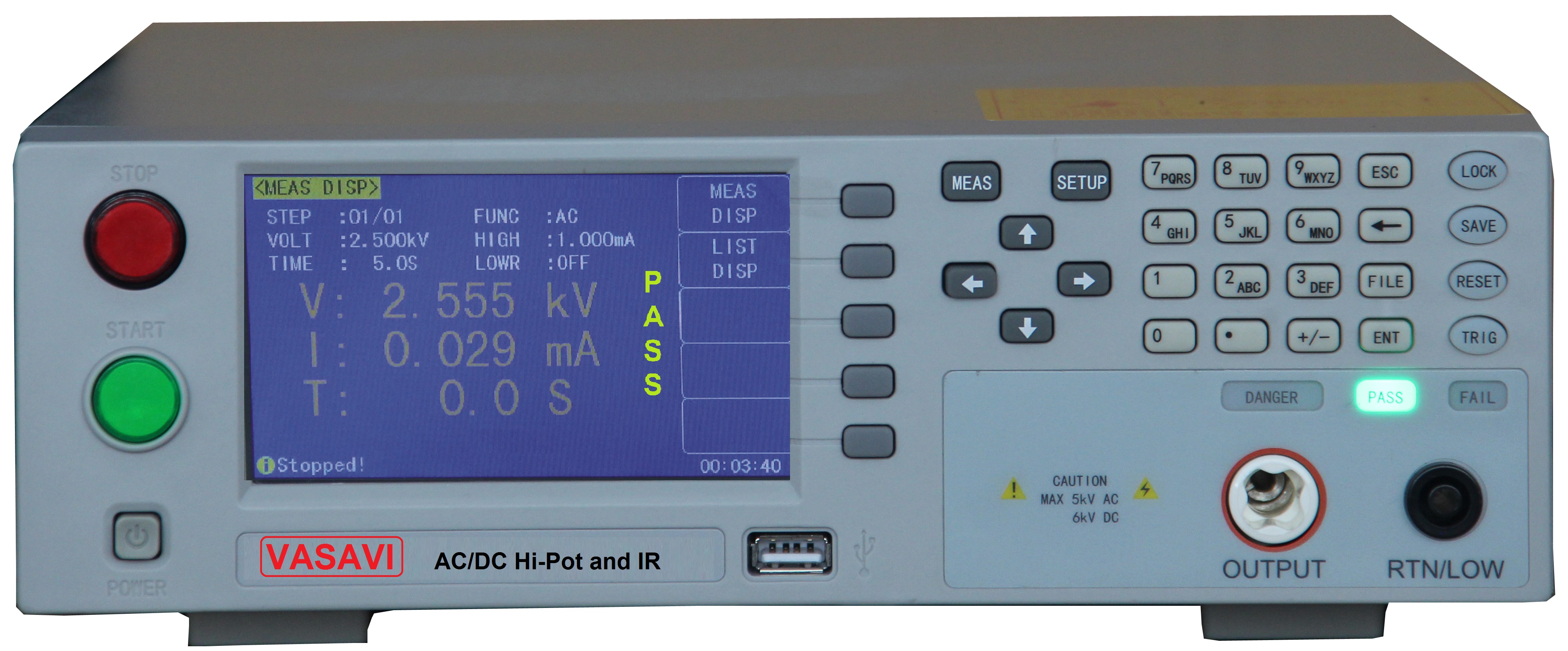

AC
/ DC Hi-Pot & Insulation Resistance Tester (VE9311U)
|
|
Microprocessor
Based AC / DC Withstanding Voltage Tester with Insulation Resistance
Meter. With PASS / FAIL indications.
AC : 5KV / 12mA ; DC : 6KV / 5mA
VE9311U
:
AC / DC Withstanding & IR
Tester ;
Technical Data / Demonstration Video
|

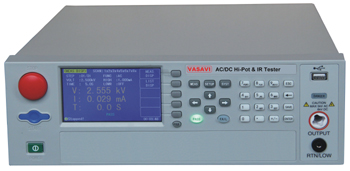

AC / DC Hi-Pot & Insulation Resistance Tester (VE9051U /
VE9053SU)
|
|
Microprocessor
Based AC / DC Withstanding Voltage Tester with Insulation
Resistance Meter. With PASS / FAIL indications.
AC : 5KV / 30mA ; DC : 6KV / 10mA
VE9051U
:
AC / DC Withstanding & IR
Tester ;
Technical Data / Demonstration Video

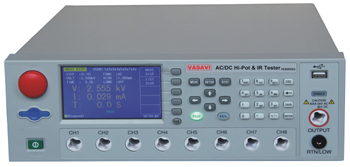

VE9053SU
: AC
/ DC Withstanding & IR
Tester with 8
Channel Scanner
; Technical
Data / Demonstration Video |

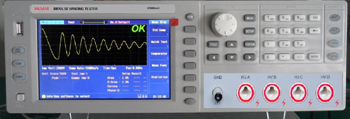

Impulse Tester / Winding Short Tester
|
|
Impulse Tester can detect turn & layer short ,the differences in the number of turns and the material of the core. If high impulse voltage is applied, the poor insulation will appear as a corona or layer discharge
VE2882A2-5U
: 5KV with 2 Channel Impulse Winding Tester
VE2882A4-5U
: 5KV with 4 Channel Impulse Winding Tester
|

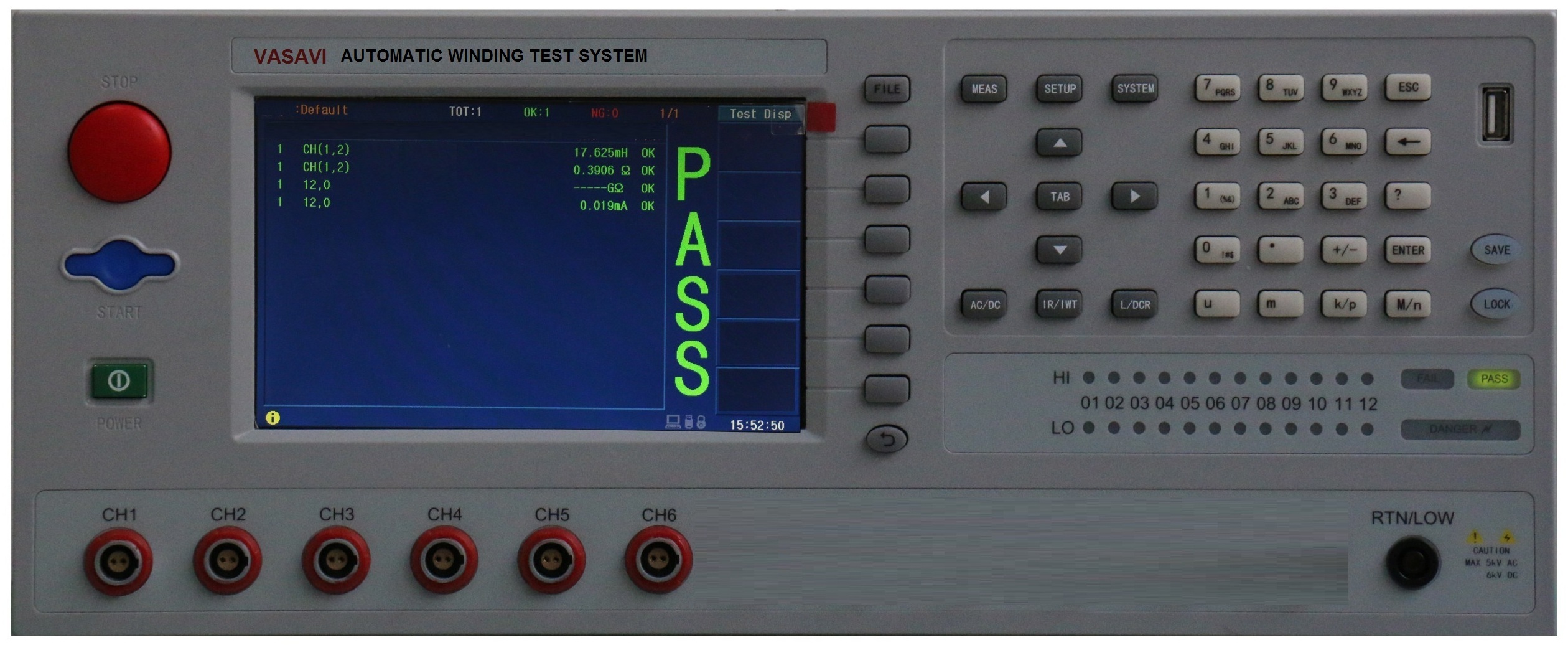

AUTOMATIC
WINDING TEST SYSTEM / MOTOR TESTER
|
|
Microprocessor
based Automatic Test System for Automobile Coils, Magnetos, Alternator,
Motor Winding.
Can
Test : Impulse Winding Tester (IW), AC/DC HiPot, Insulation
Resistance (IR), Inductance (L), DC Resistance (DCR)
VE90312SU
: AUTOMATIC WINDING TEST SYSTEM (12-Channel)
(Technical
Data / Demo
Video)
|

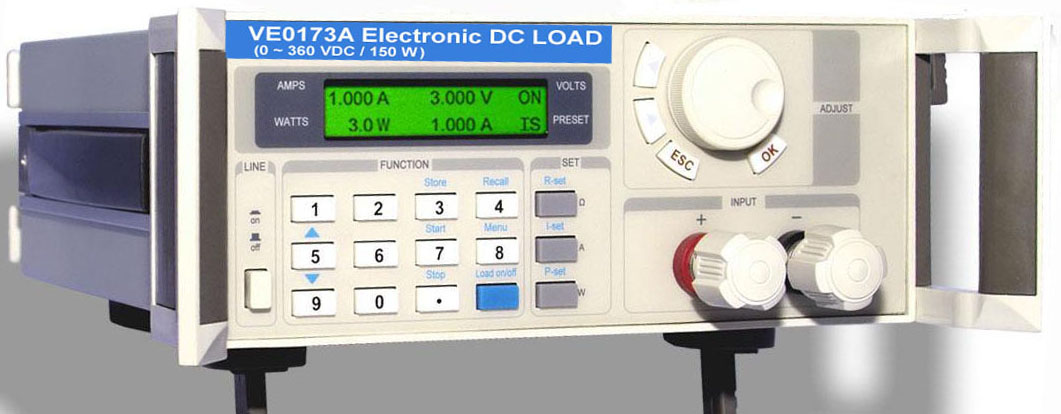

150W
/ 300W Programmable Electronics DC Load (VE0173A / VE1173A)
|
|
Programmable Electronic DC Load for 30A most ideal for mobile chargers, battery chargers, SMPS etc. Can test with CC, CP, CR Mode
VE0173A
:
360Vdc / 30A / 150W (Technical
Data /
Demonstration Video)
VE1173A
:
360Vdc / 30A / 300W
(Technical
Data / Demonstration Video) |

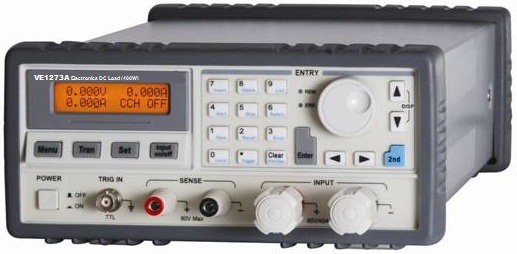

200W
/ 350W / 400W Programmable Electronics DC Load (VE2273A /
VE3273A / VE1273A)
|
|
Programmable Electronic DC Load for
most ideal for mobile chargers, battery chargers, SMPS etc. Can test with
CV, CC, CP, CR Mode
VE2273A
:
200Vdc
/ 20A
/ 200W
(Technical
Data /
Demonstration Video)
VE3273A
:
200Vdc
/ 30A / 350W
(Technical
Data / Demonstration Video)
VE1273A
:
80Vdc
/ 40A
/ 400W
(Technical
Data / Demonstration Video) |

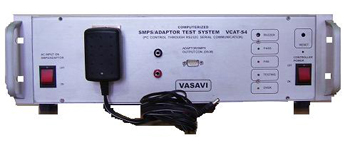

Computerized
Automatic SMPS / ADAPTER TEST SYSTEM (VCAT-S4 )
|
|
Computerized
Automatic SMPS / ADAPTER test System is most ideal for mobile chargers, battery chargers, SMPS etc.
50V / 2A / 50W
Data Sheet
:VCAT - S4
|
|
|

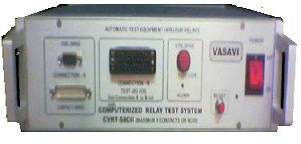

Ideal for automatic testing of Electro mechanical and Read Relays (Only DC relays)
CVRT-S8
:
Computerized Relay Tester for Max. 8 Contacts DC Relay (Technical Data)
CVRT-S16
:
Computerized Relay Tester for Max. 16
Contacts DC
Relay
(Technical Data) |
 |

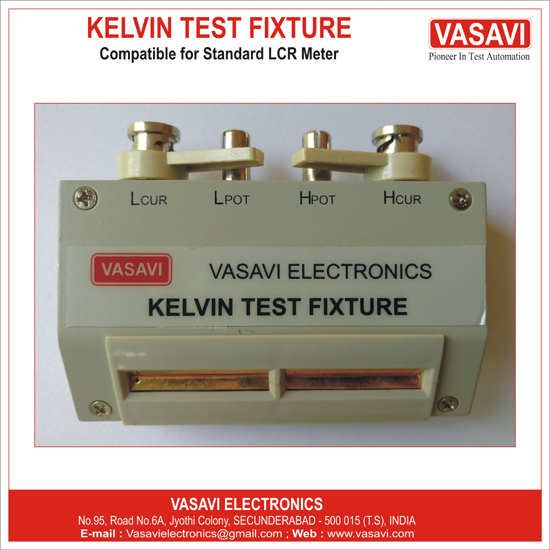

Suitable Standard LCR Models
|
 |
Suitable Standard LCR Models
|

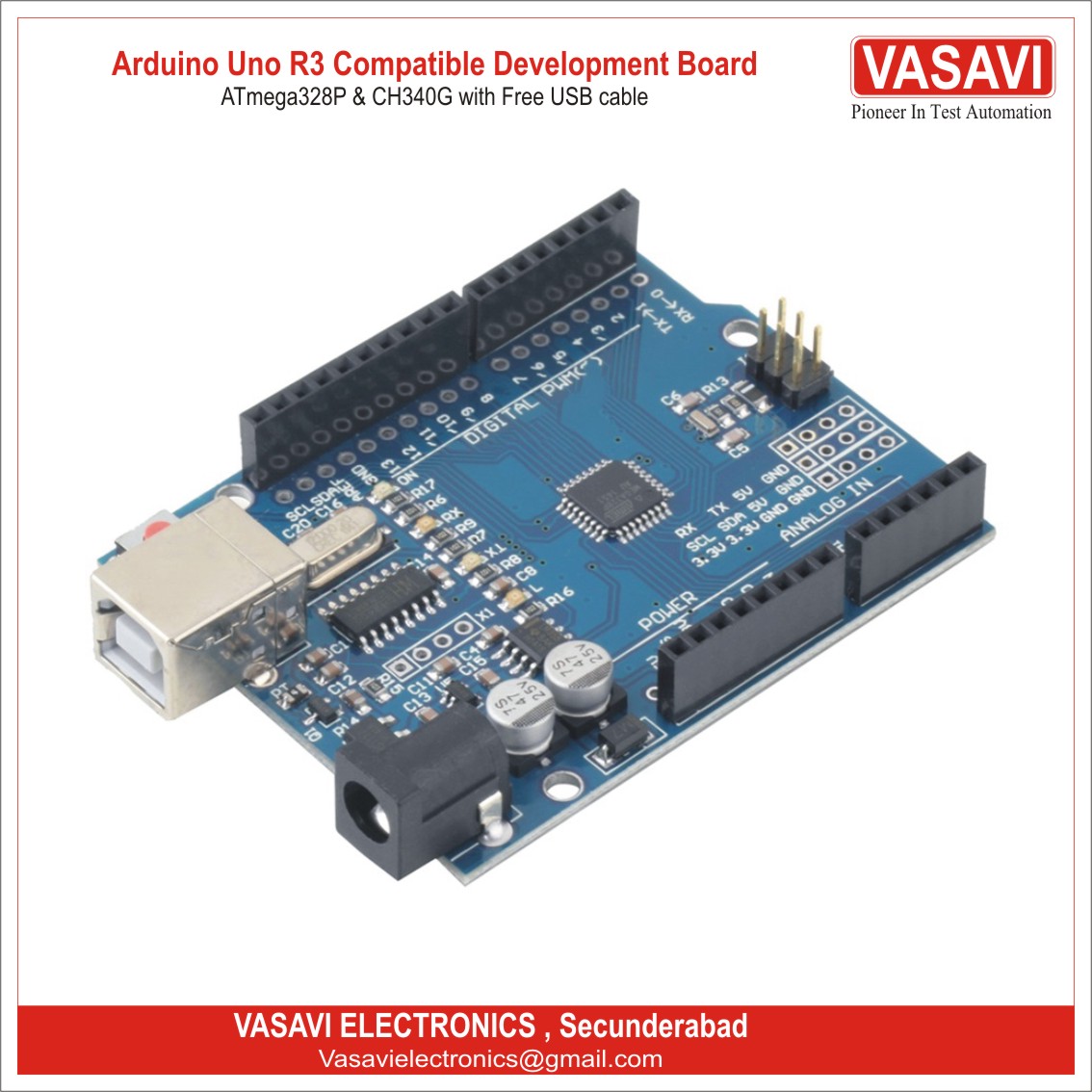

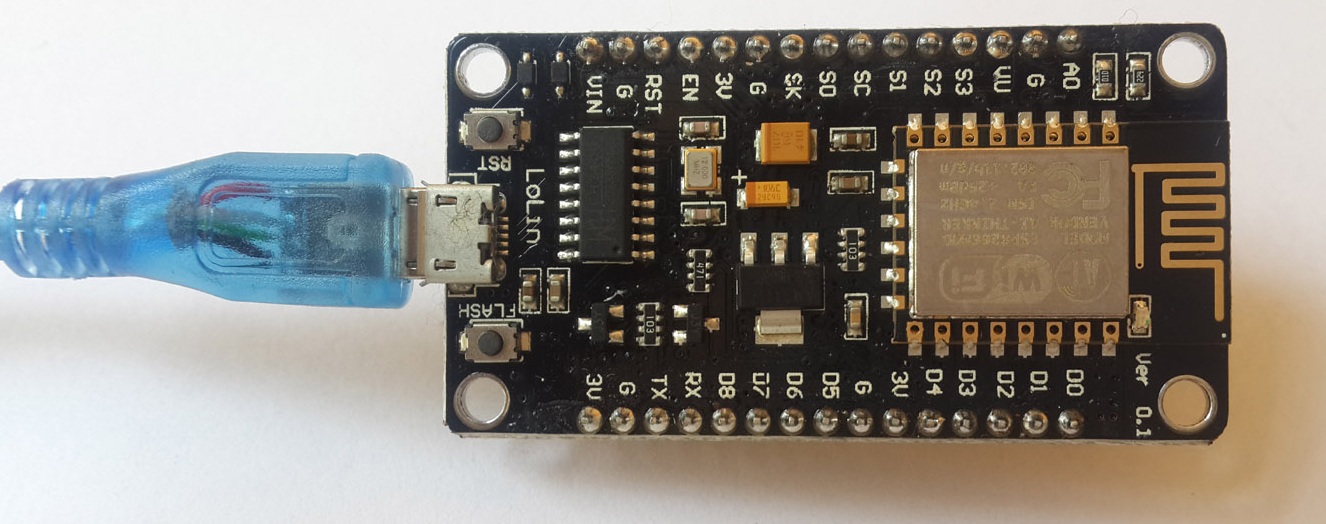

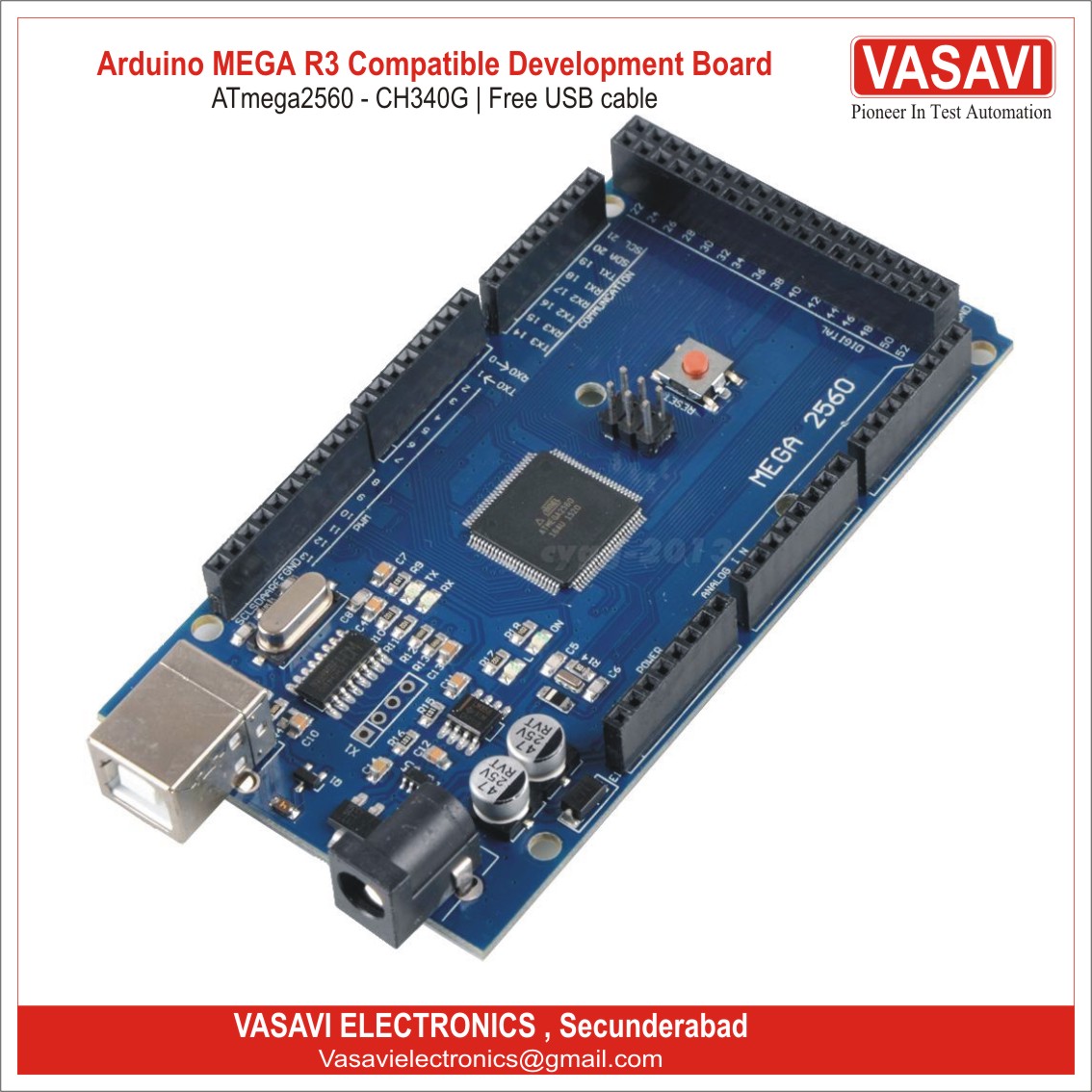

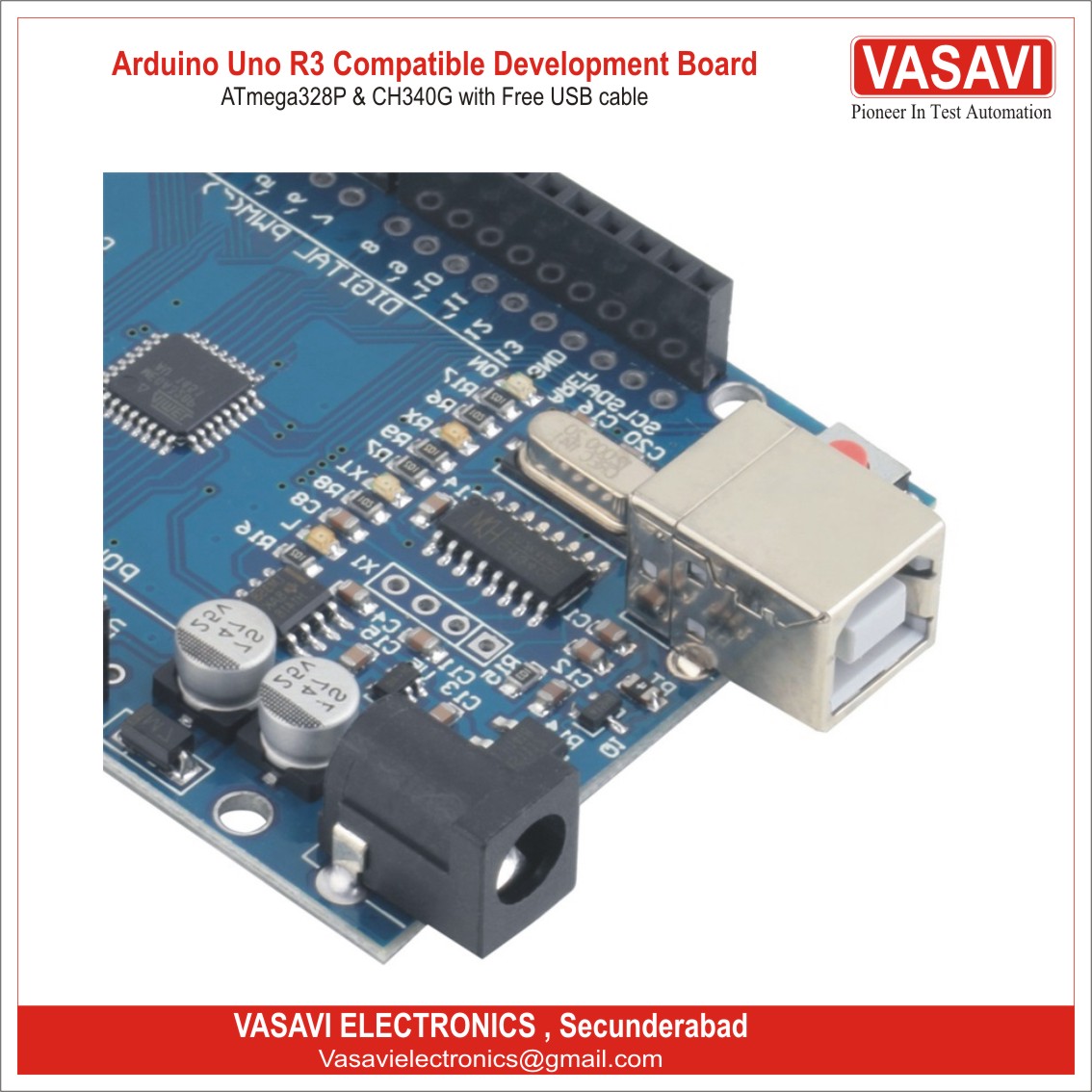

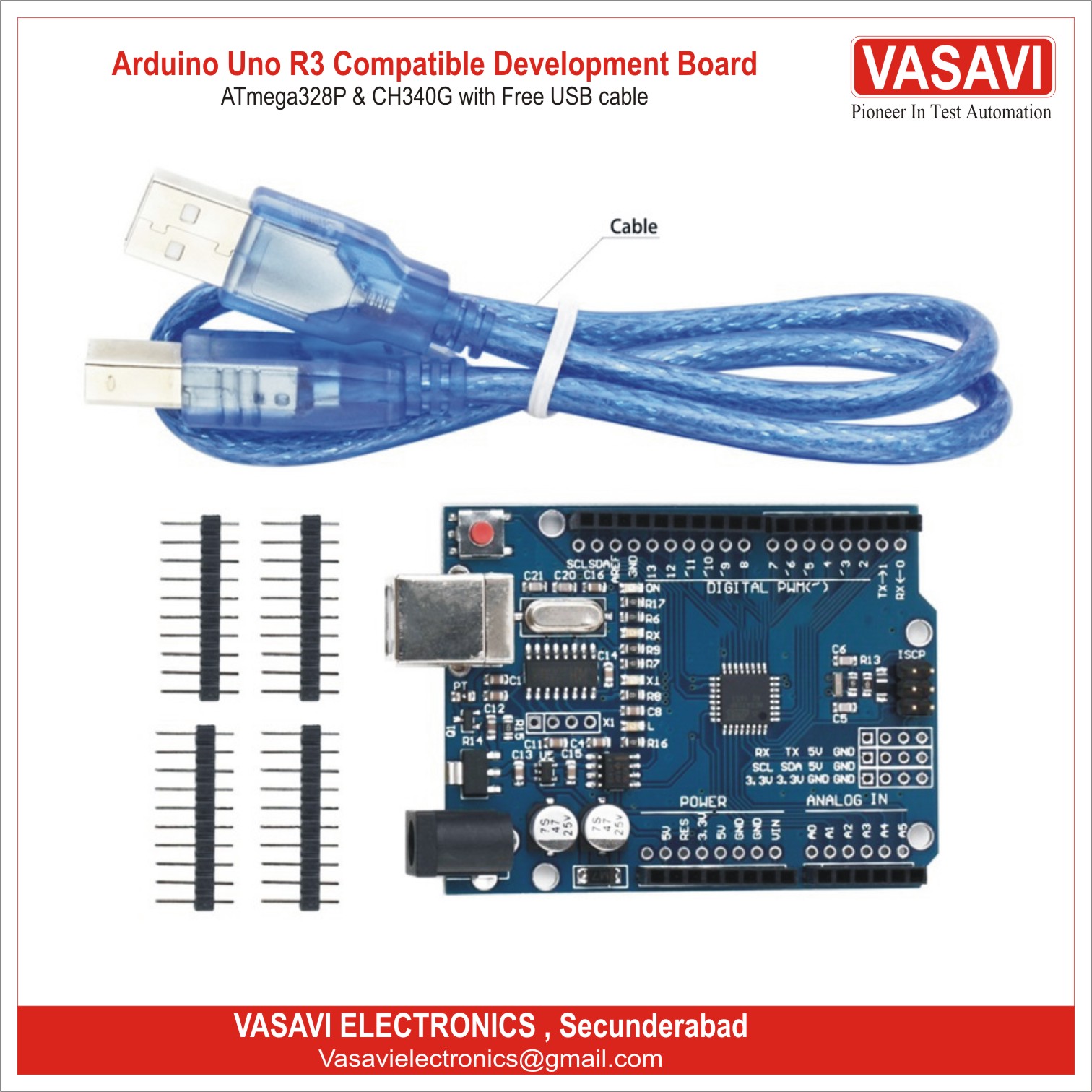

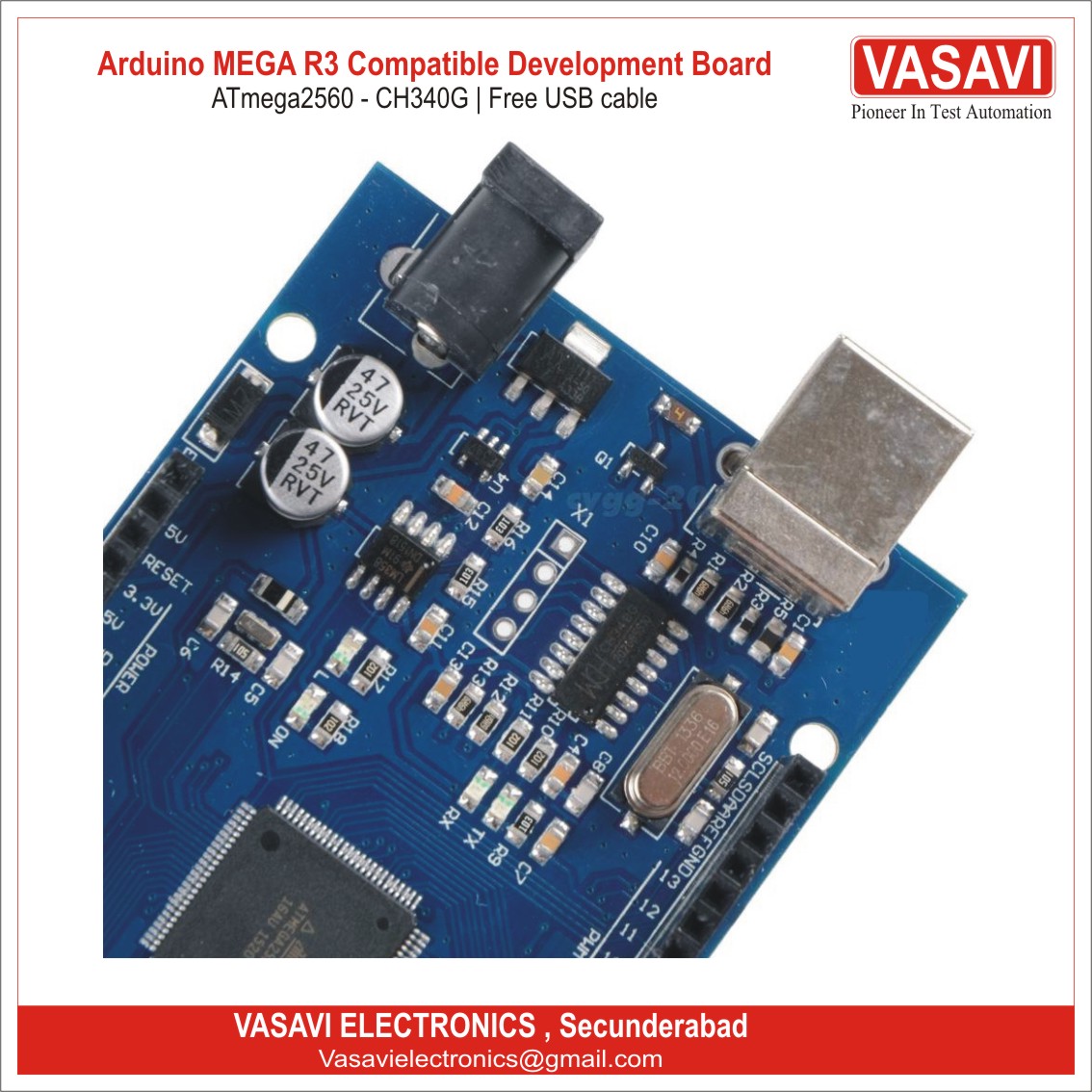

Development Boards
Market
VASAVI
ELECTRONICS has been supplying to several large manufacturers through out
India including multinational companies and 100% Export oriented units. Most
of the ferrite-transformer manufacturers in India are using Vasavi automatic
test equipment. Vasavi specially designed automatic equipment for testing
aerospace relays being manufactured by CII Guardian who are the Indian
associates of TYCO Electronics, USA. Designed equipment for auto testing of signaling
relays used in Indian railways.
With
the modernization and computerization of every field, now it is time for
atomization of testing even for small manufacturing companies. The experience
in both instrumentation and computerization have helped Vasavi to
revolutionize the test automation even for small component manufacturers by
the most economical and viable solutions.
Having
supplied to several hundreds of Indian customers, Vasavi is now looking for
the export market or associations by large foreign marketing companies/brands.
We
also export our products to USA , MEXICO, CHINA, UK, FRANCE, GERMANY, HONG
KONG, NEW ZEALAND, BRAZIL, THAILAND, HAITI and etc...
|
:
